$1,299.00 $1,099.00

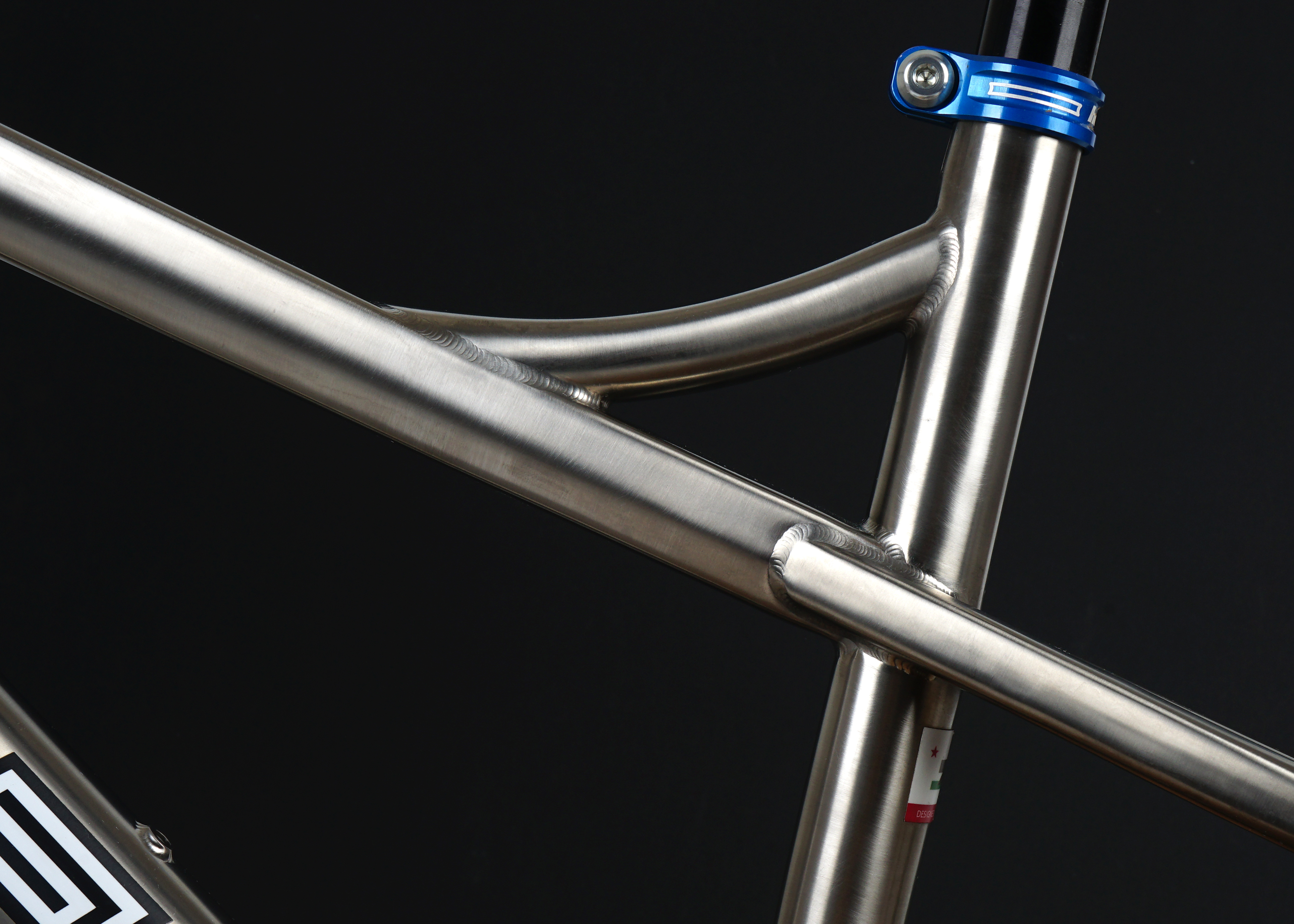

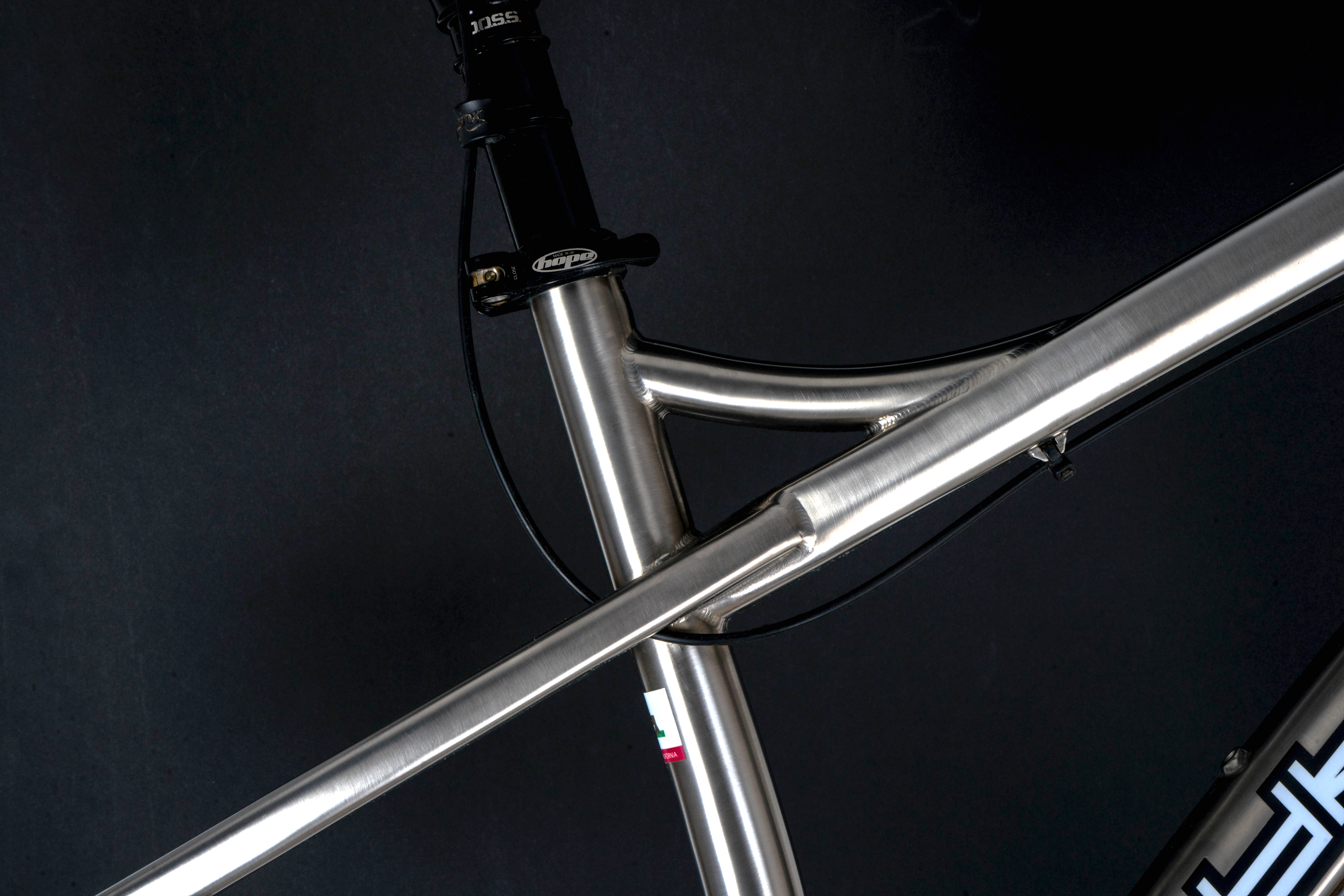

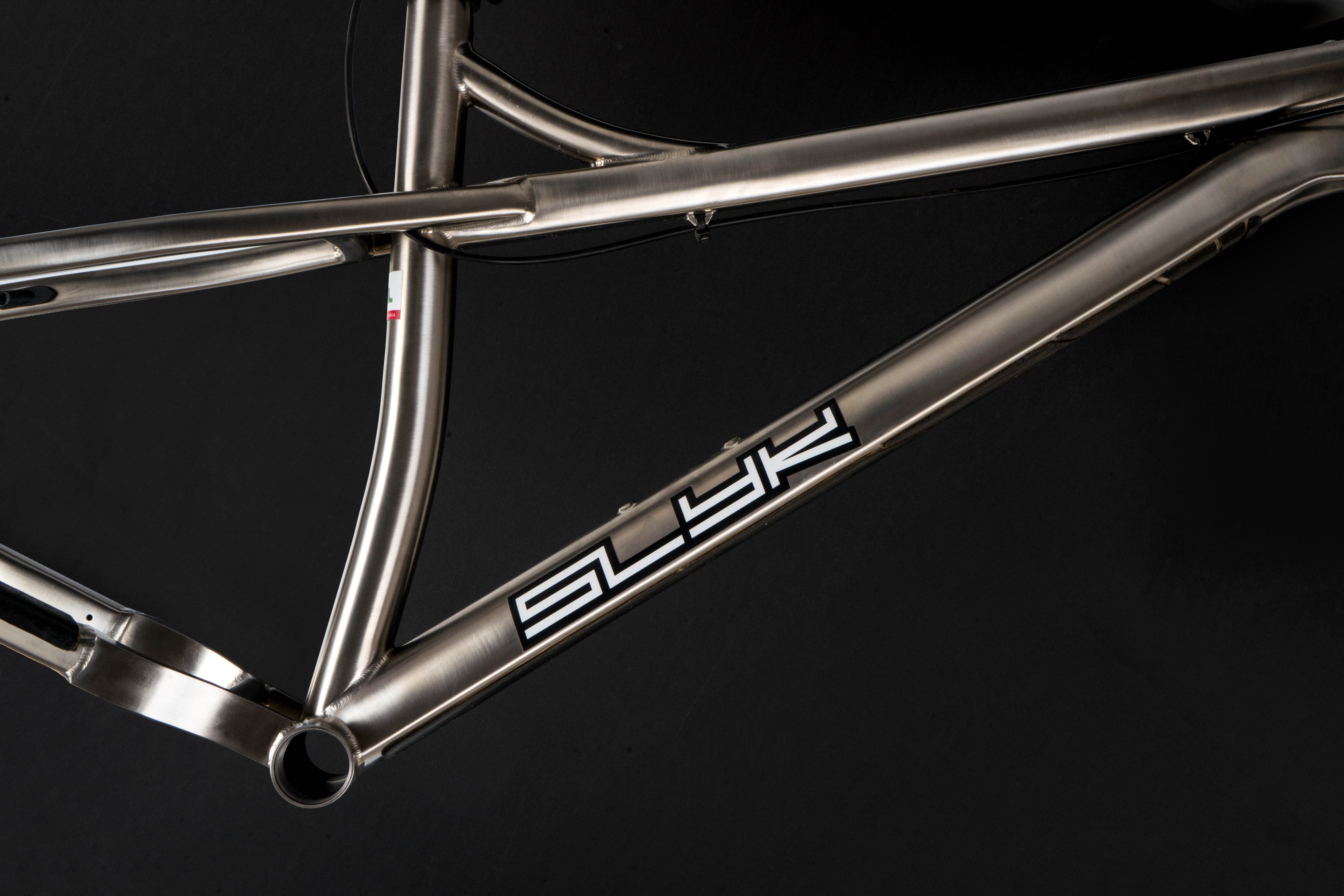

The titanium AM is designed with a super slack head angle to give you more stability and confidence on the downs, while maintaining composure on the climbs. The unique triangulation of the seat stays to the top tube, means that direct shock and vibrations to the seatpost are minimized. We kept the chain stays nice and short to give you that flickable ride quality, and the custom formed downtube provides all the strength and clearance you need for the big hits. This frame is truly designed for long-travel forks between 140-160mm or travel!

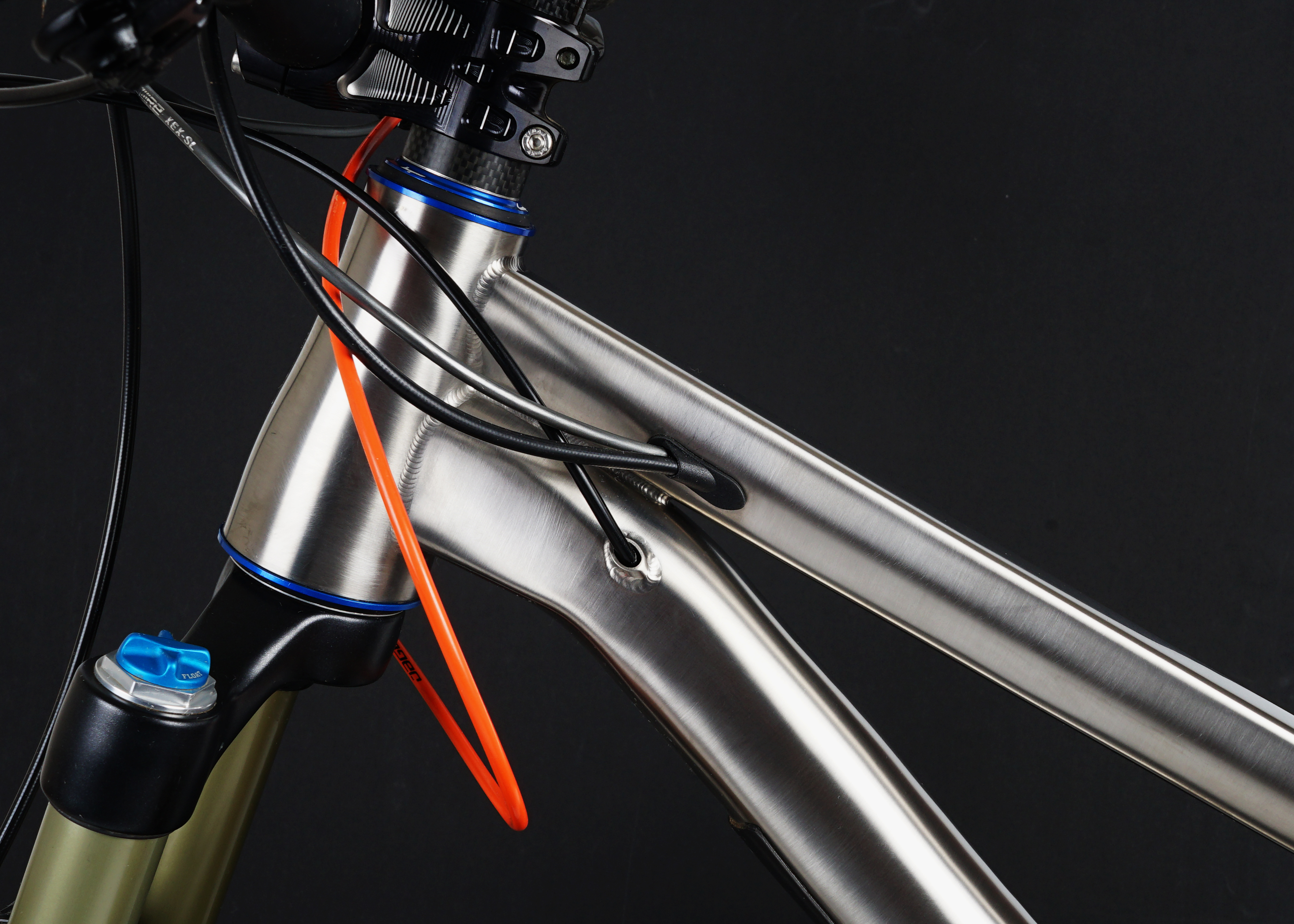

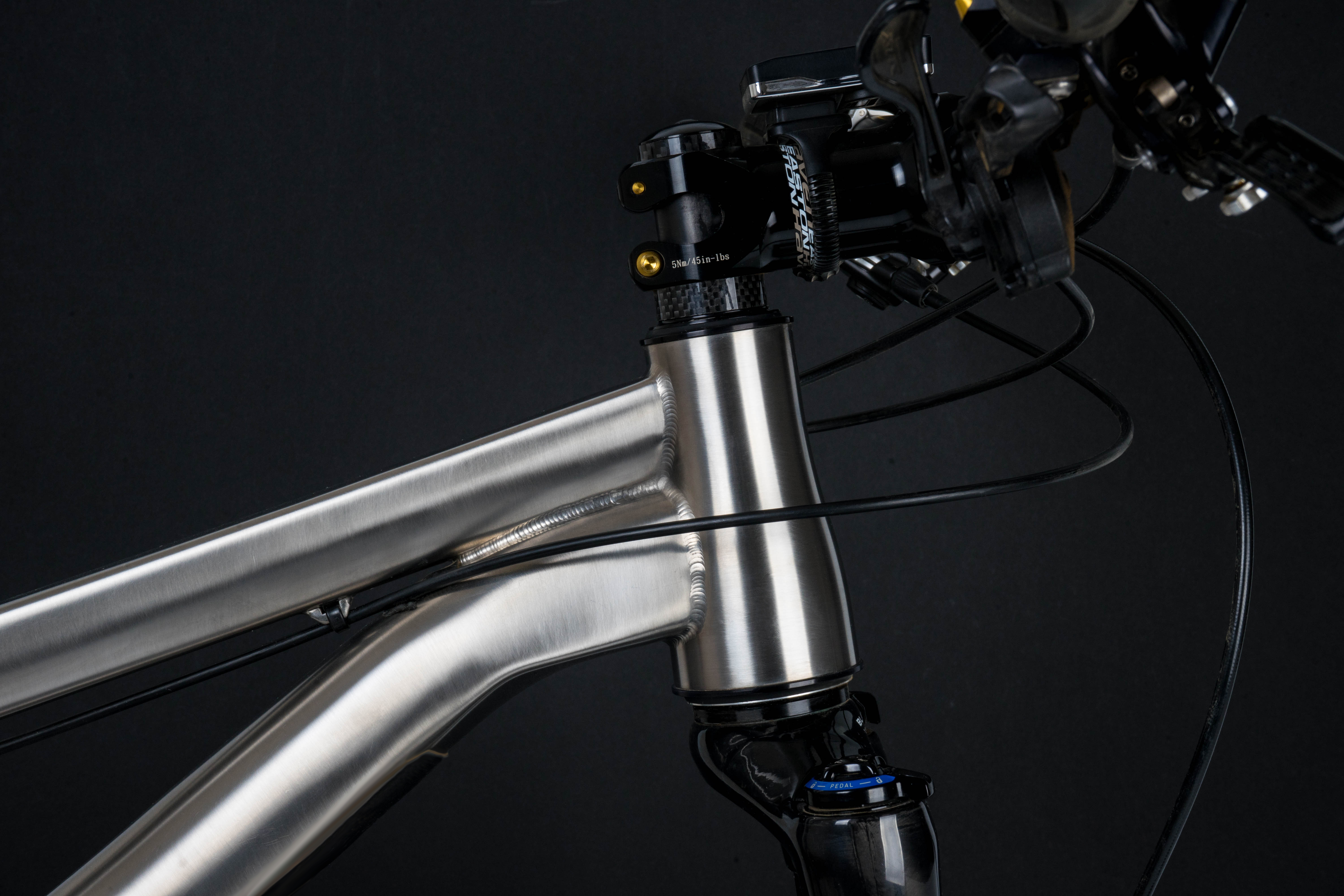

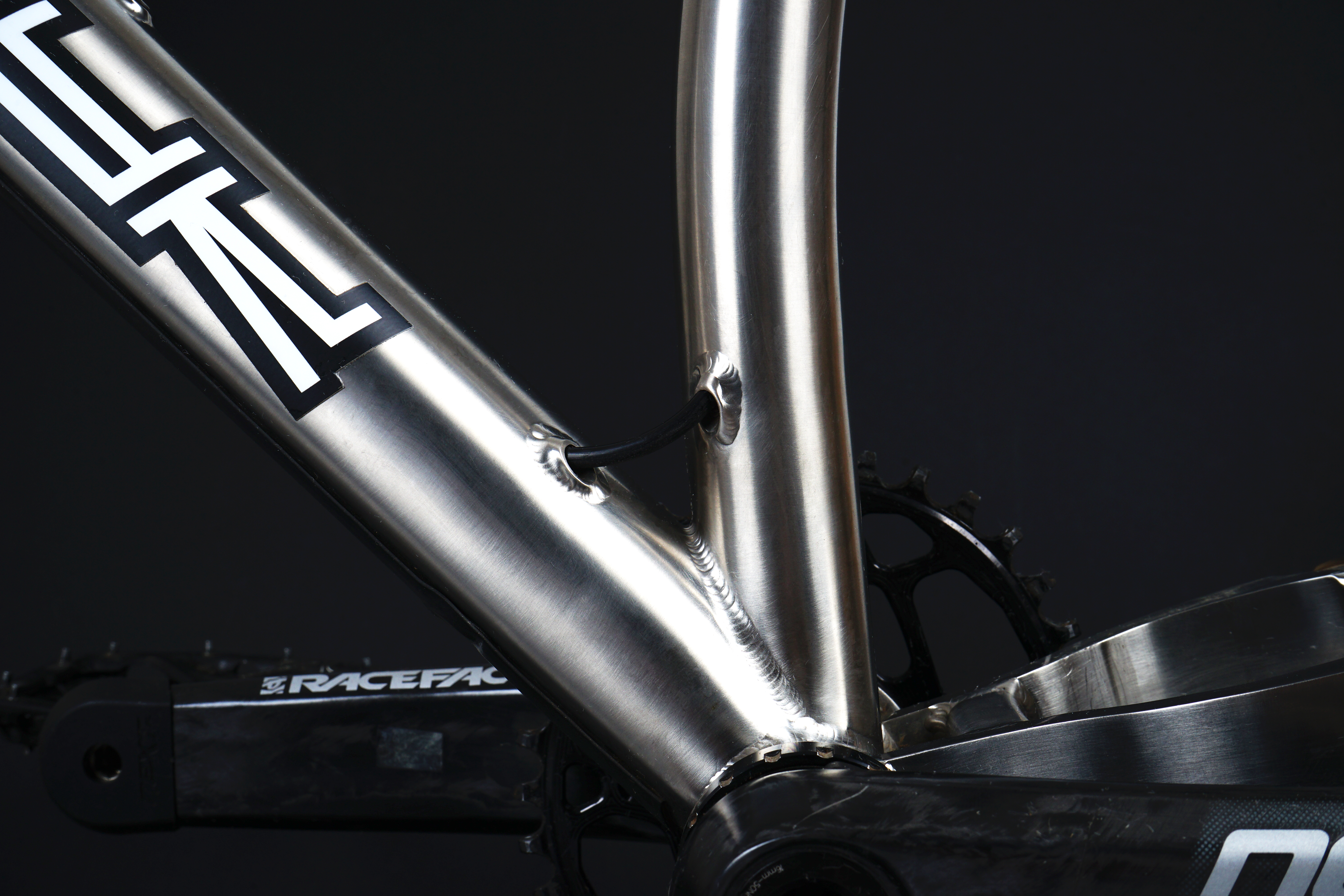

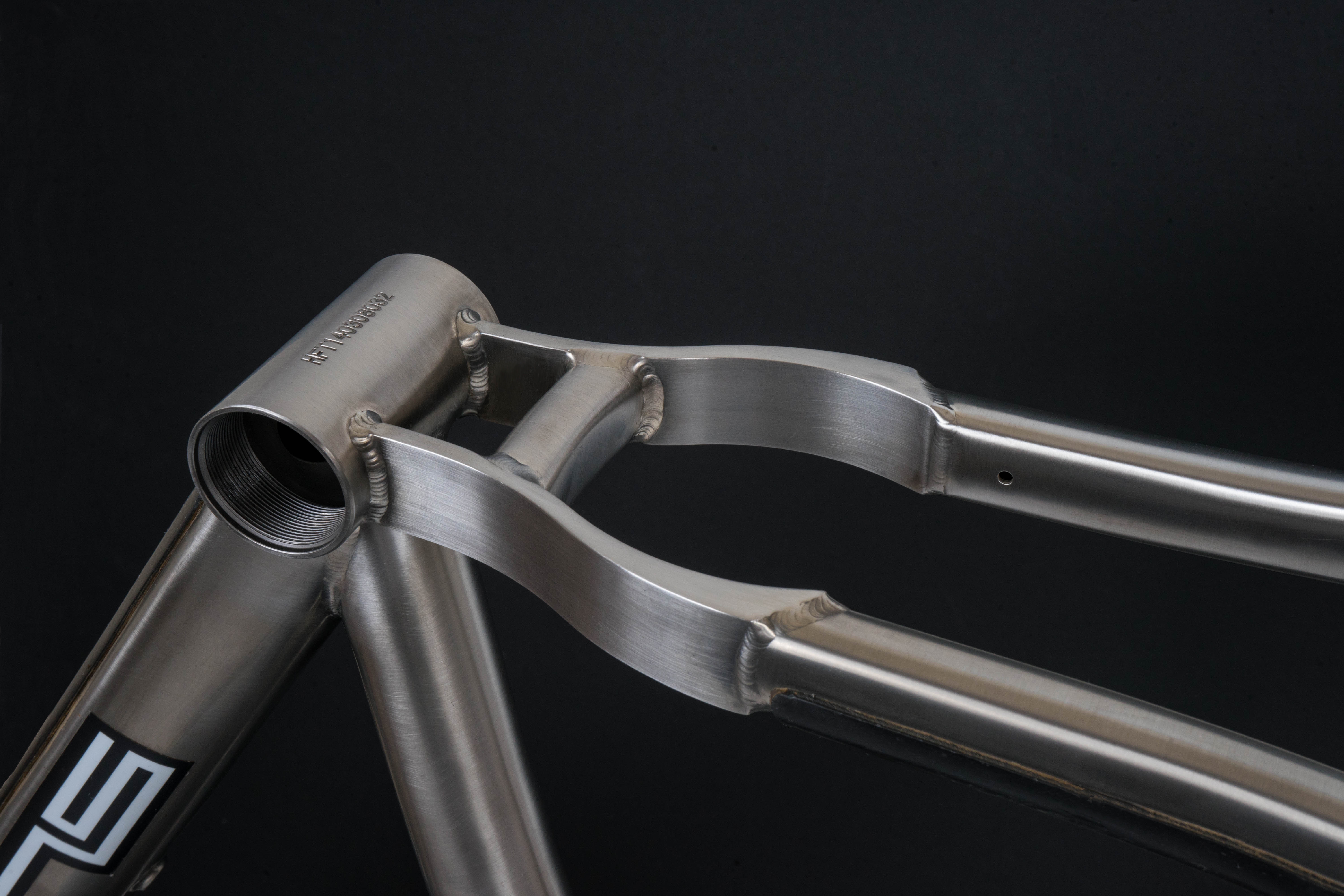

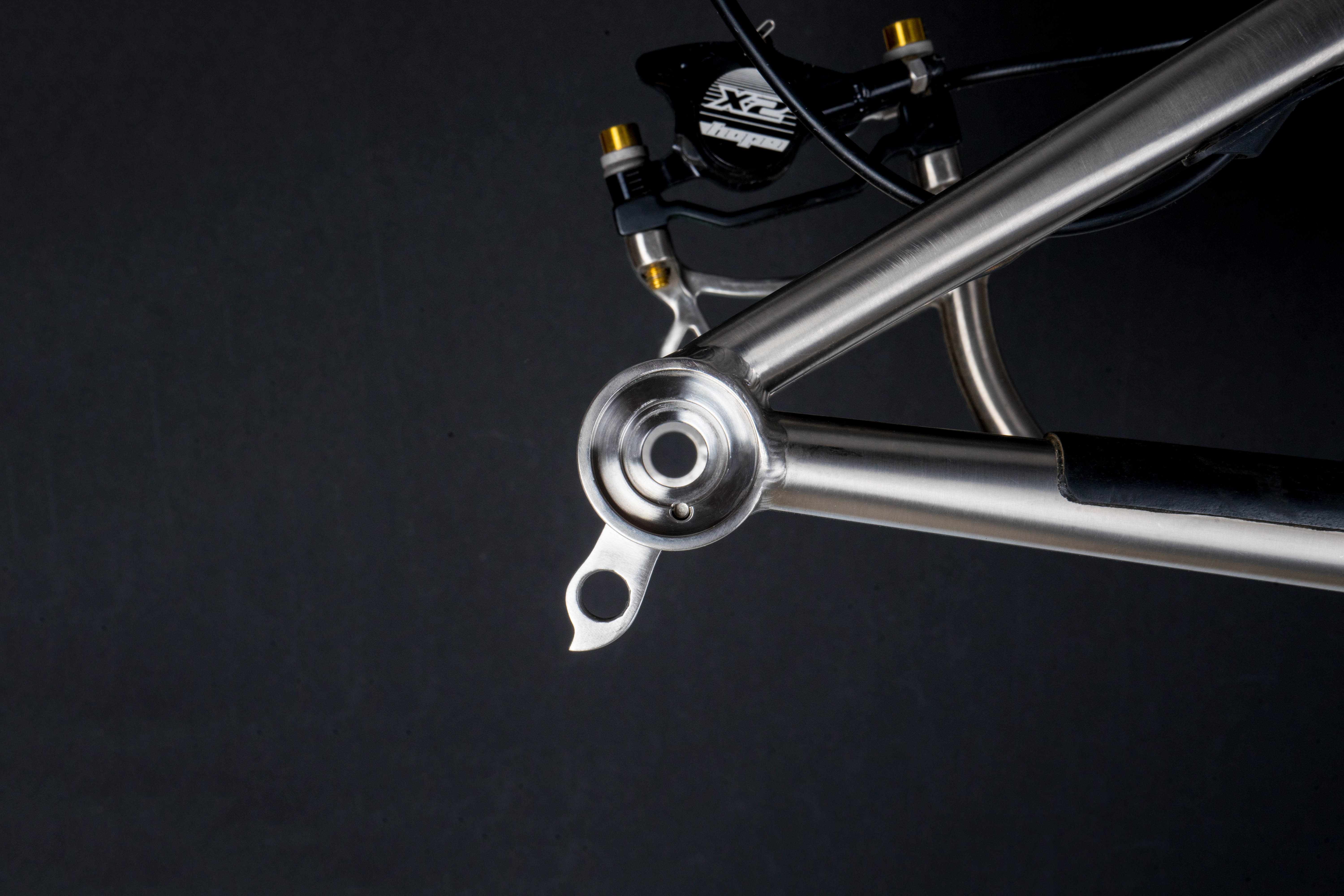

Other features include internal cabling for brakes, rear derailleur, and dropper seatpost. Rear thru-axle is 12x142mm for strength and compatibility. 72mm bottom bracket to adapt to 24mm or 30mm crankshaft spindles. Disc brake bosses are designed for 160mm rotors. Our custom chainstay yoke guarantees that rocks and debris won’t destroy your frame should it get sucked in between your tires and the chainstay. Tapered headtube allows for a multitude of fork choices.
LT142
Long Travel
12x142mm Thru-Axle
Titanium Gr9 (TI-3AL-2.5V)
Advanced Hydroforming Technique utilized to create strong, yet light, tube profiles for the top tube, down tube, chainstays and seatstays.
Average weight of our 27.5 (650b) frames is about 1.8kg (3.97 lbs.)
Only logged in customers who have purchased this product may leave a review.

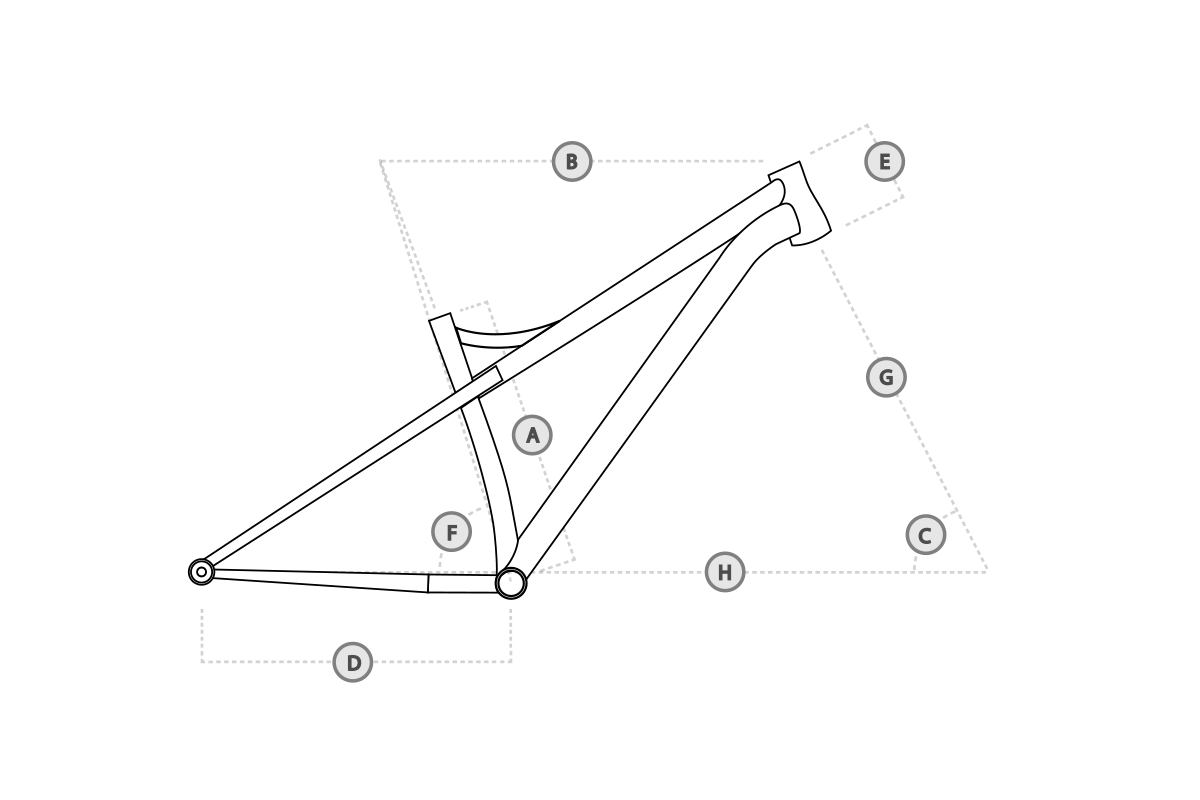

| Small | Medium | Large | Extra Large | ||
| ? | Seat Tube | 380/15″ | 425/17″ | 460/18″ | 510/20″ |
| ? | Effective Top Tube | 585mm | 600mm | 640mm | 660mm |
| ? | Head Angle | 66° | 66° | 66° | 66° |
| ? | Chain Stay | 420mm | 420mm | 420mm | 420mm |
| ? | Head Tube | 110mm | 110mm | 110mm | 110mm |
| ? | Seat Tube Angle | 73° | 73° | 73° | 73° |
| ? | Axle-to-Crown (AC) | 530mm | 530mm | 530mm | 530mm |
| ? | Wheelbase | 1100mm | 1125mm | 1190mm | 1215mm |
| Bottom Bracket Drop | -40mm | -40mm | -40mm | -40mm |
